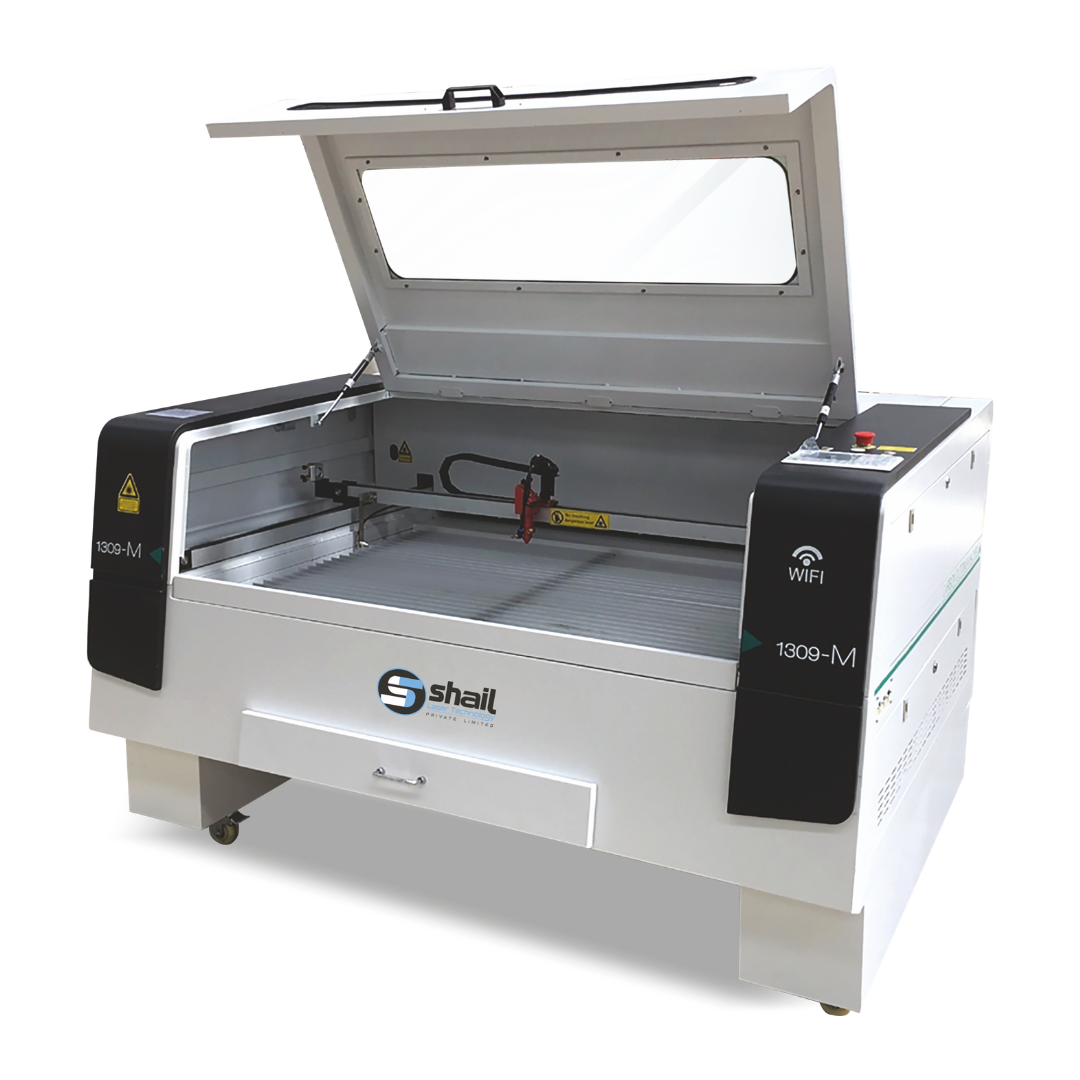

CO2 laser cutting is a non-contact cutting process that uses a high-powered CO2 laser beam to cut through or engrave materials. The laser beam is focused on the surface of the material, creating a localized high-intensity heat that vaporizes or melts the material. The focused laser beam is guided by mirrors and controlled by a computer to achieve .
Technical Description:
| PARAMETER | SLT6040 | SLT9060 | SLT1390X1490 | SLT1610 | SLT1325 |
| Laser Power | 30-150w | 30-150w | 30-150w | 30-150w | 30-150w |
| Working Area |
600X 400mm |
900X600mm | 1300X 900mm |
1600X 1000mm |
1300X 2500mm |
| Working Speed |
0-64000 mm/min |
0-64000 mm/min |
0-64000 mm/min |
0-64000 mm/min |
0-64000 mm/min |
| Cutting Thickness |
0.15mm Determine by material |
0.15mm Determine by material |
0.15mm Determine by material |
0.15mm Determine by material |
0.15mm Determine by material |
| Location Precision |
0.01mm | 0.01mm | 0.01mm | 0.01mm | 0.01mm |
| Equipment Size |
1360X800X 1080mm |
1560X1250X 1080mm |
1860X1350X 1080mm |
2160X1250X 1080mm |
1300X2500x 1080mm |
| Packing Size |
1500X940X 1220mm |
1700X1360X 1220mm |
2000X1490X 1220mm |
2300X1390X 1220mm |
1500X3000X 1220mm |
| GW/NW | 320kg/ 250kg |
420kg/ 380kg |
480kg/ 380kg |
600kg/ 480kg |
1000kg/ 1200kg |
SALIENT FEATURES
- RDWorks/Lightburn Softwer
- High Speed Digital Step Motors
- Honeycomb+Blade table
- Built-in 5200 Chiller and Blower
- Reci W1/W2/W4/W6 Premium CO2 Galss Tube
- Scan speed of up to 1200mm/second

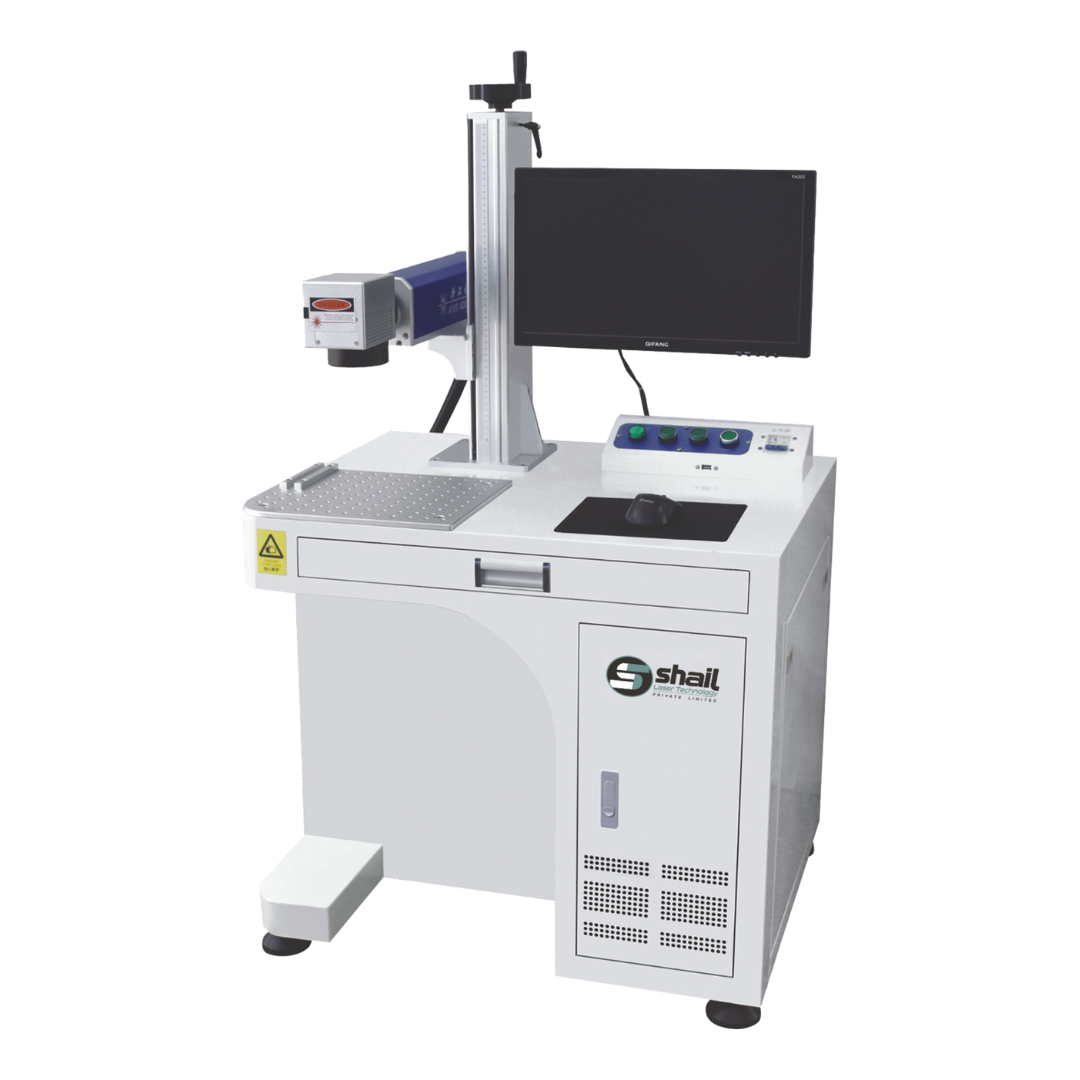

Machine Perameters:
| DESCRIPTION | ||
| Laser Parameters | Laser Source | Fiber Laser |
| Laser Wave Length | 1064mm | |
| Average Output Power | 20,30,50,100w | |
| Modulation frequency Range | 20kHz 80kHz | |
| Galvo Parameters | Maximum Speed | 10000mm/s |
| Resolution | 0.001mm | |
| Repositioning Precision | +0.003mm | |
| cooling system | Cooling system | Air cooling |
| Weight | Net Weight | 150kg |
| Gross Weight | 170kg | |
| System Properties | Laser power Supply | 0.5KW/AC220V/50Hz-60Hz(Optional 110V) |
| Manual Working Table Stroke | Movement Itinerary 285mm(Desktop Type) | |
| Enviornmental Requirements | 0-35 C,90% or Humidity | |
| Size | equipment size | 85*70*138cm |
| packing size | 94*79*148cm | |
