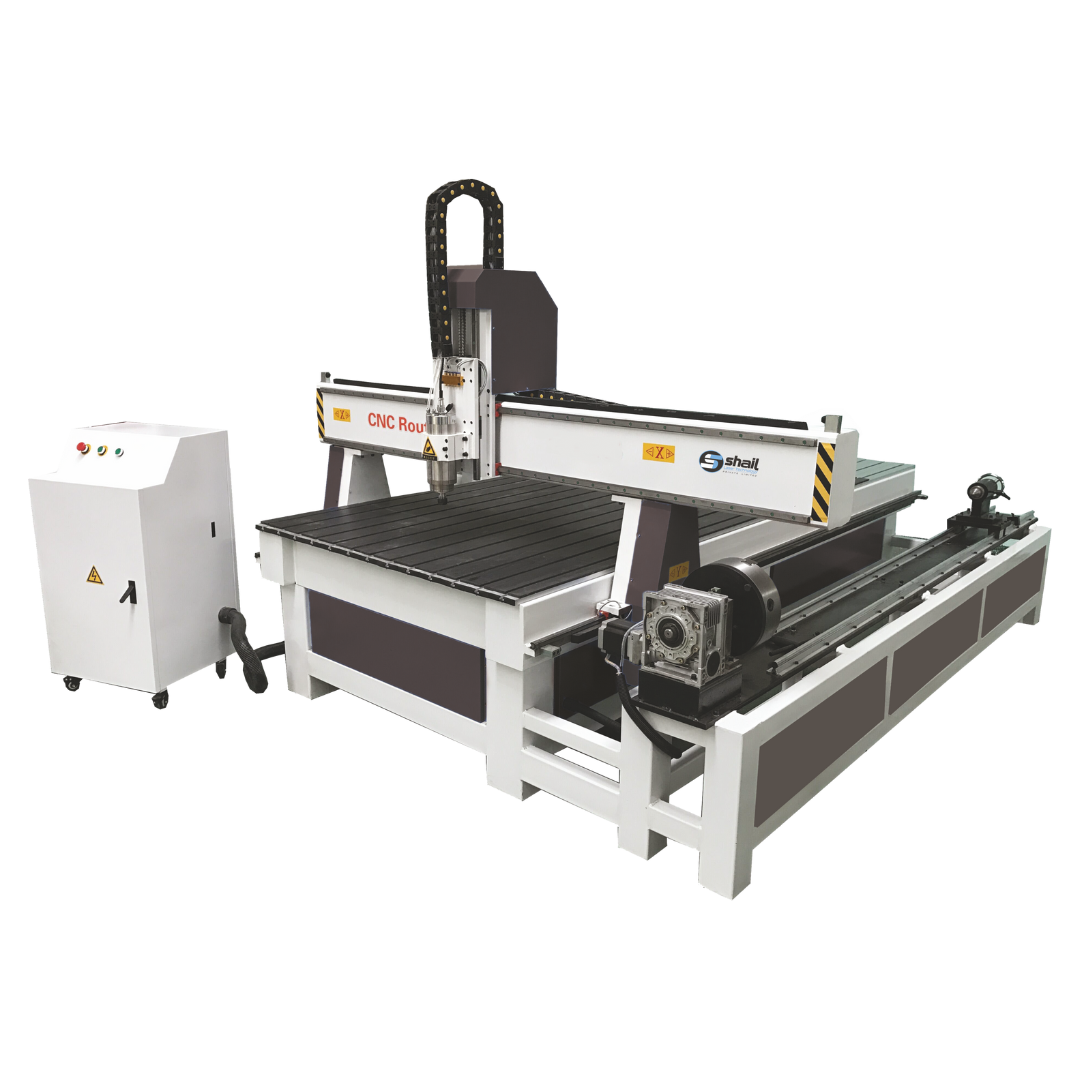

A CNC router with a rotary attachment, also known as a CNC rotary axis or 4th axis attachment, is a specialized configuration of a CNC router that allows the machine to perform rotary or cylindrical engraving and cutting operations. The rotary attachment adds an additional axis of rotation (often referred to as the A-axis) to the CNC router’s traditional X, Y, and Z axes.
Technical Description:
| DESCRIPTION | STR-1325 |
| X-Y-Z Axis Movement | 1300X2500X300mm |
| Reposition Accuracy | 0.01mm |
| X-Y Movement | Taiwan Rack & Pinion Transmission |
| Z Movement | German Ball Screw |
| X-Y-Z Axis Movement | Through Belt Pully Gear Box |
| Table Size | 1500X3050mm |
| Max Idling Speed | 35m/min |
| Working Voltage | 3Q/380V/220V 50HZ |
| Splindle Air Cooled Italian HSD/HITECO/HQD Splindle | 6HP,0-18000RPM |
| Drive Motor | Servo/Steper |
| Command | G Code(*.mmg, *.plt, *.tap) |
| Computer Interface | USB |
| Cable & Cable Guide | “IGUS”German |
| Controls | Rich Auto A11E |
| Inverter | Best/Delta/Fracon |
| Colet Type and Size | ER 32/25 (3mm, 6mm, 12mm) |
| Work Piece Holding | Manual T-Slot Clamping |
| Dust Collector | Optional |
| Servo Stebilizer | Optional |
| Rotary Job Size | Max,Dia.150mmX2500mm |

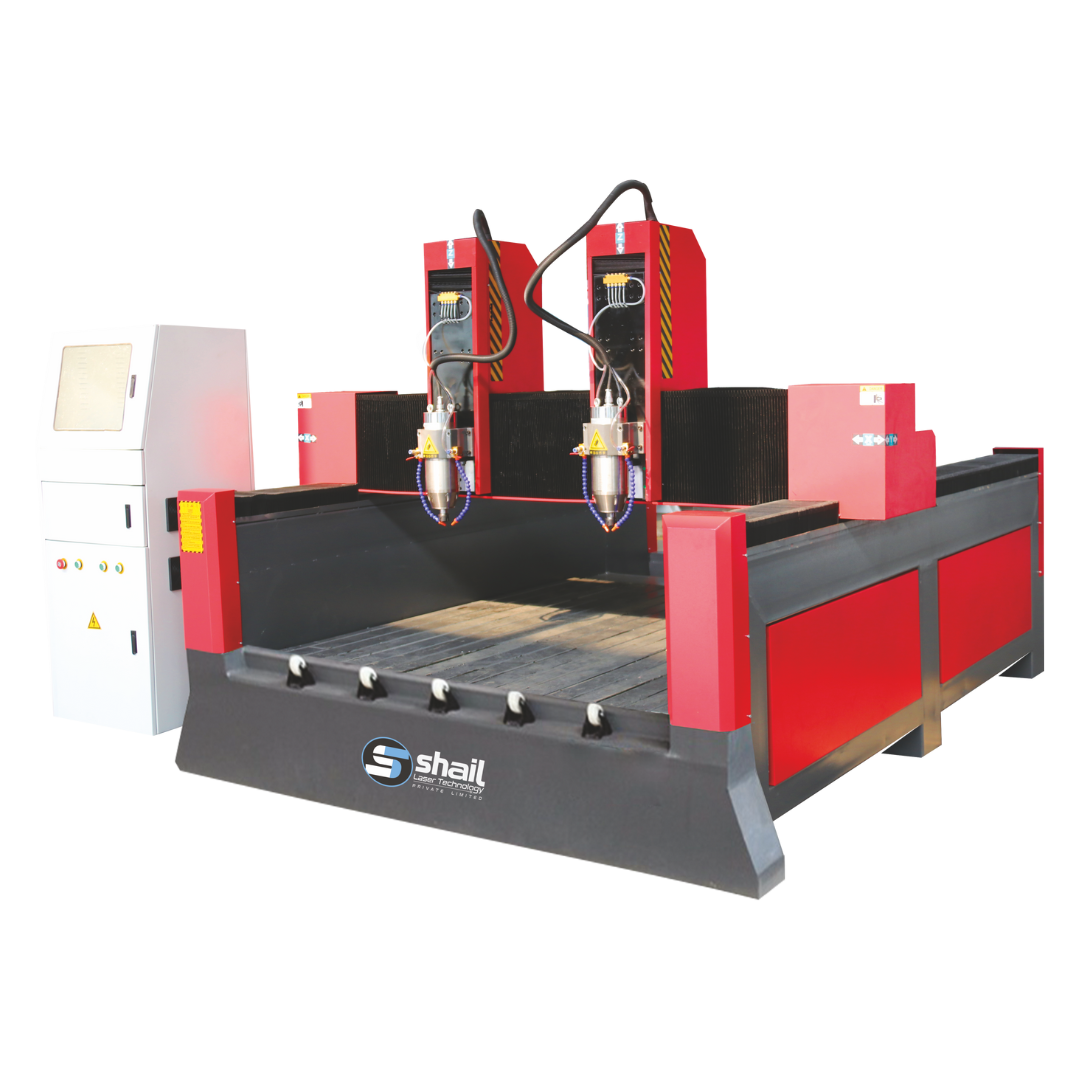

Technical Description:
| DESCRIPTION | STS-1325 |
| X-Y-Z Axis Movement | 1300X2500X300mm |
| Reposition | 0.01mm |
| X-Y Movement | Taiwan Rack & Pinion Transmission |
| Z Movement | German Ball Screw |
| X-Y-Z Axis Movement | Through Belt Pully Gear Box |
| Table Size | 1500X3050mm |
| Max Idling Speed | 35m/min |
| Working Voltage | 3Q/380V/50HZ |
| Splindle | water Cooled Splindle 4.5kw (6HP) |
| Splindle Rotating Speed | 0-24000RPM |
| Drive Motor | Servo/Steper |
| Command | G Code(*.mmg, *.plt, *.tap) |
| Computer Interface | USB |
| Controls | NK-105/NC Studio/Rich Auto A11 |
| Collet Size | 6mm, 8mm, 12mm |
| Work Piece Holding | Manual T-Slot Clamping |
| Water Tank | Yes |
| Auto Water Cooling System | Yes |
| Servo Stebilizer | Optional |
