CNC Router
_
A CNC router, short for Computer Numerical Control router, is a computer-controlled cutting machine used for precision routing, carving, engraving, and shaping various materials. It operates based on programmed instructions that guide the router’s movement along multiple axes, allowing it to create complex designs with high accuracy and repeatability.
Technical Description:

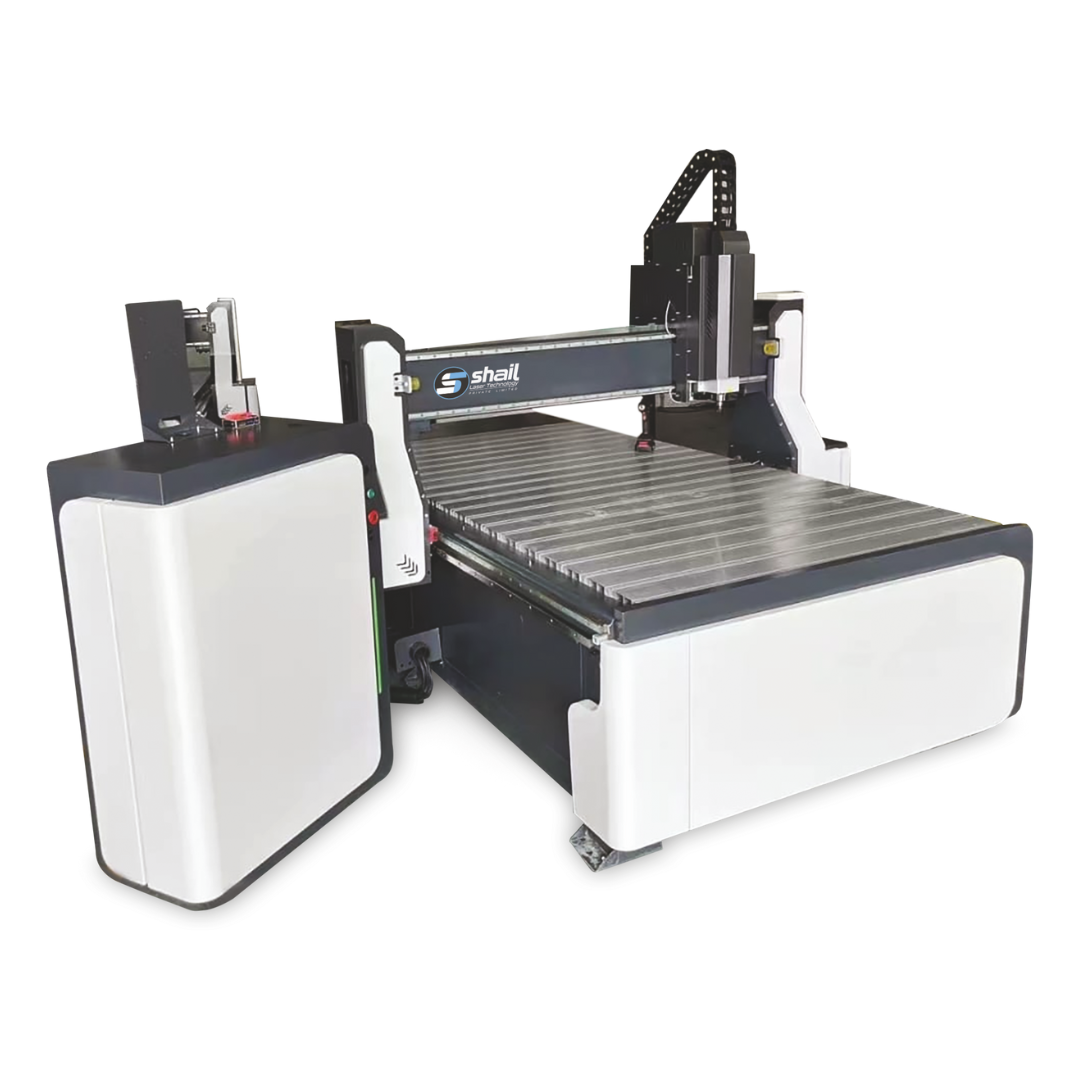

| DESCRIPTION | ST-1325 A+ |
| X-Y-Z Axis Movement | 1300X2500X300mm |
| Reposition Accuracy | 0.01mm |
| X-Y Movement | Taiwan Rack & Pinion Transmission |
| Z Movement | German Ball Screw |
| X-Y-Z Axis Movement | Through Belt Pully Gear Box |
| Table Size | 1500X3050mm |
| Max Idling Speed | 35m/min |
| Working Voltage | 3Q/380V/220V 50HZ |
| Splindle Air Cooled Italian HSD/HITECO/HQD Splindle | 3.5/4/6kw, 0-18000/24000RPM |
| Drive Motor | Servo/Steper |
| Command | G Code(*.mmg, *.plt, *.tap) |
| Computer Interface | USB |
| Cable & Cable Guide | “IGUS”German |
| Controls | NK-105/Rich Auto A11 |
| Inverter | Best/Delta/Fracon |
| Colet Type and Size | ER 32/25 (4mm, 6mm, 12mm) |
| Work Piece Holding | Manual T-Slot Clamping |
| Dust Collector | Optional |
| Servo Stebilizer | Optional |
Technical Description:

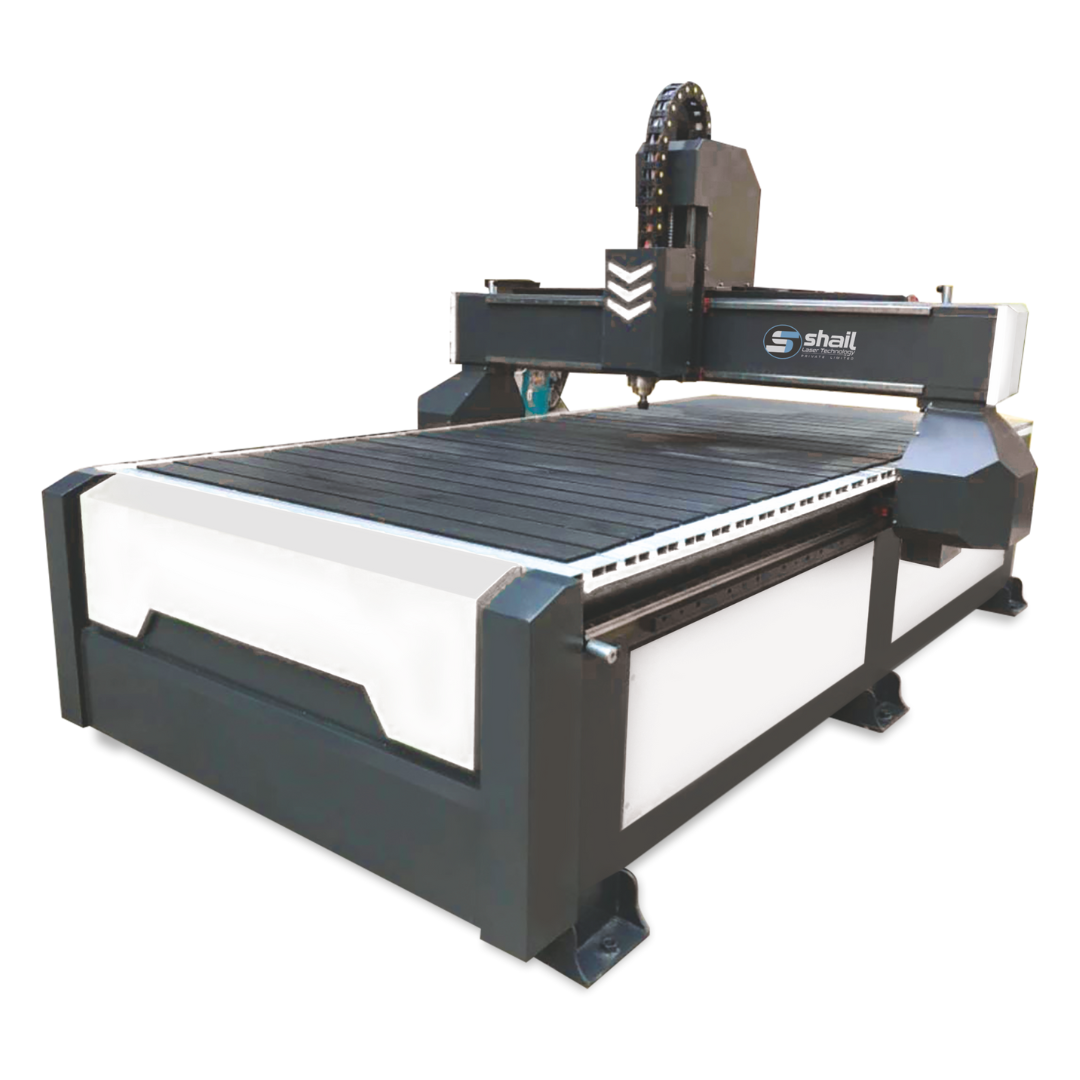

| DESCRIPTION | ST-1325 A |
| X-Y-Z Axis Movement | 1300X2500X300mm |
| Reposition Accuracy | 0.01mm |
| X-Y Movement | Taiwan Rack & Pinion Transmission |
| Z Movement | German Ball Screw |
| X-Y-Z Axis Movement | Through Belt Pully Gear Box |
| Table Size | 1500X3050mm |
| Max Idling Speed | 35m/min |
| Working Voltage | 3Q/380V/220V 50HZ |
| Splindle Air Cooled Italian HSD/HITECO/HQD Splindle | 3.5/4/6kw, 0-18000/24000RPM |
| Drive Motor | Servo/Steper |
| Command | G Code(*.mmg, *.plt, *.tap) |
| Computer Interface | USB |
| Cable & Cable Guide | “IGUS”German |
| Controls | NK-105/Rich Auto A11 |
| Inverter | Best/Delta/Fracon |
| Colet Type and Size | ER 32/25 (4mm, 6mm, 12mm) |
| Work Piece Holding | Manual T-Slot Clamping |
| Dust Collector | Optional |
| Servo Stebilizer | Optional |
